Product Details:
|
Material: | High Purity Quartz | Surface Treatment: | Polished |
---|---|---|---|
Deep Processing: | Available | Thickness: | 0.5-100mm |
High Transmittance Quartz Glass plate is made of fused quartz in special industrial technology glass, which is a very good base material.Quartz glass has a series of excellent physical and chemical properties.
The feature of the clear quartz glass is as follows: high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, fire polish, bending, sealing, polished and so on. OH content can be controlled less than 20ppm15ppm10ppm5ppm2ppm.
Parameters:
Character of quartz plate | Value | Hardness | 570KHN100 |
Color | Clear/Transparent | Tensile strength | 4.8×107Pa(N/m2) |
Diameter | 5-500mm | Coefficient of thermal expansion (20℃-300℃) | 5.5×10-7cm/cm℃ |
Soften temperature | 1730℃ | Thermal conductivity (20℃) | 1.4W/m℃ |
Density | 2.2g/cm3 | Material | 99.9% Pure Sio2 |
Application | Optical//Industry, Optical/Semiconductor/Industry |
Specific heat(20℃) | 660J/kg℃ |
Shape | square or circle | Price | 2-99 USD PER PCS |
Product Name | High Temperature Quartz Glass Plate | Port | Dalian |
Specifications of quartz glass plate

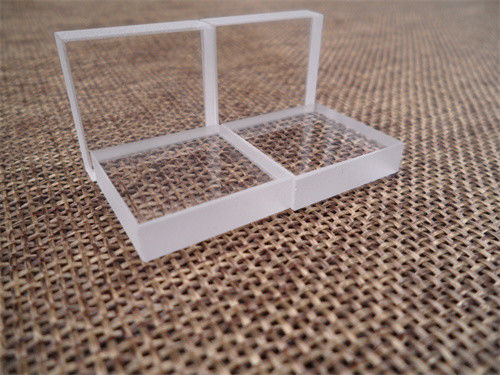

Fused Clear Silica Quartz Glass Plate
We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
Packing or shipping
1. PE air-cusshion film wrapping
2. Cardboard case
3. Wooden carton
4. Film wrapping
1. By train, ship or air
2. By express, like DHL, FEDEX, TNT, EMS, SF, UPS or as per your request.
How to order or search products?
Please choose the goods with links or pictures that you want to order. Then click ,fill your email & tell number and leave a message ,we will reply you with 24hours.
Another way,send inquiry if the bottom of the page and click ,the inquiry will reach us succesfully .
You can write the name of your target product in the search box on the top of the page.
